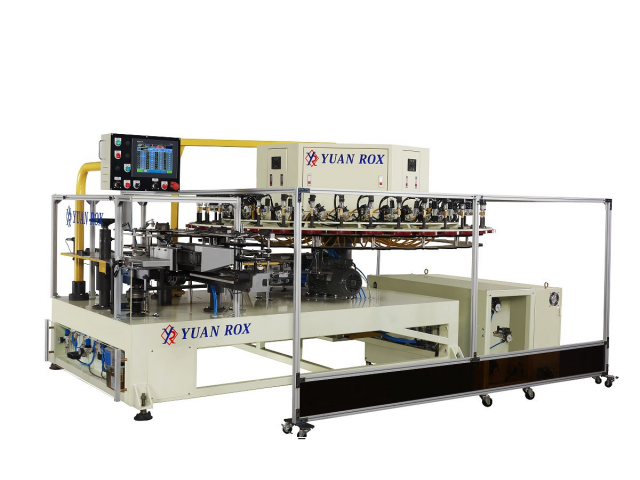

AUTO. VACUUM LEAKAGE TESTER

TYPE

YR-807V 36H+/60H+

BODY DIAMETER RANGE #202D – #401D (60H+) OR #401D - #710D (36H+)
CAN HEIGHT RANGE #202D – #401D:65 MM- 180 MM
#401D – #701D:65 MM- 260 MM

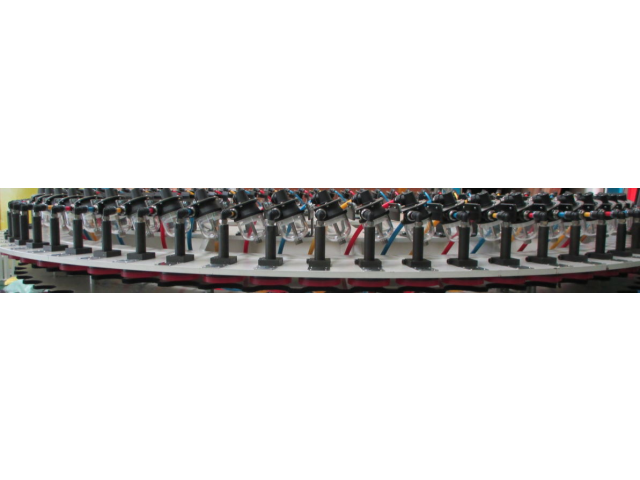

NUMBER HOLES 36H / 60H
EFFICIENCY CAPACITY 36H+ = 300 – 400 CANS/MIN
60H+ = 600 CANS/MIN
OPERATING TEST VACUUM 850 M BAR (637 MMHG)
COMPRESSED AIR REQUIREMENT 50 LITER/MIN AT 6 BAR


FEATURES

UNDER CAN SPEC. #202D*100 MMH EFFICIENCY CAPACITY PIN HOLE Ø0.1〜Ø0.15MM(7CC)

INPUT AND OUTPUT DOUBLE VACUUM DETECTOR.

VACUUM RATE MAKE TO VOLTAGE VALUE TO CONTROL PLC BECOME DIGITAL.

NO CAN NO TEST

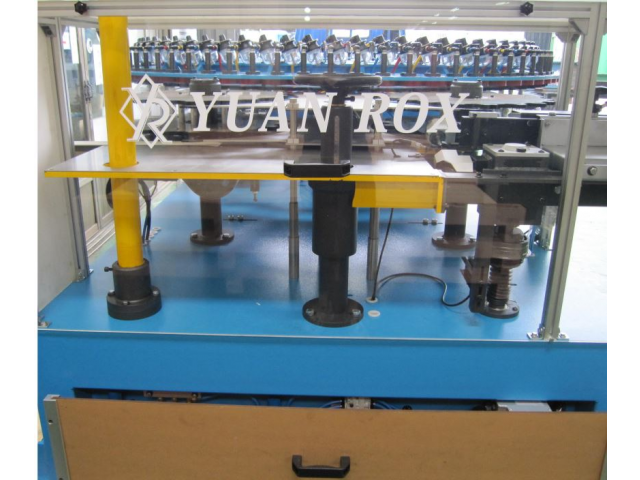

3 SETS CLUTCH ON INLET SCREW, INLET STAR WHEEL AND OUTLET STAR WHEEL.

AUTO. GUIDE THE CAN FOR AVOID CAN COLLIDE TO RUBBER AND FALL DOWN, MAKE SURE EACH CAN COULD BE DETECT BY SENSOR AND BE EJECTED BY HIGH PRESSURE AIR GUN.

LAST 10 LEAKAGE CANS WILL SHOW ON PANEL, THE PANEL ALSO SHOWS THE SETTING AND DETECT DATA. WHEN BAD CAN EJECT CONTINUOUS, MACHINE WILL AUTO. STOP AND ALARMED ON PANEL.

IT IS SUITABLE FOR APPLY THE ISO 9002 CERTIFICATION.

IT IS SUITABLE FOR APPLY THE ISO 9002 CERTIFICATION.

SAFETY HOUSING WITH ACCESS DOORS AND SAFETY SWITCHES.

*DUE TO CONTINUOUS IMPROVEMENT PROGRAMS, SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE
