YR-306A AUTOMATIC CAN BODY WELDER(HIGH PRESSURE)

Detail

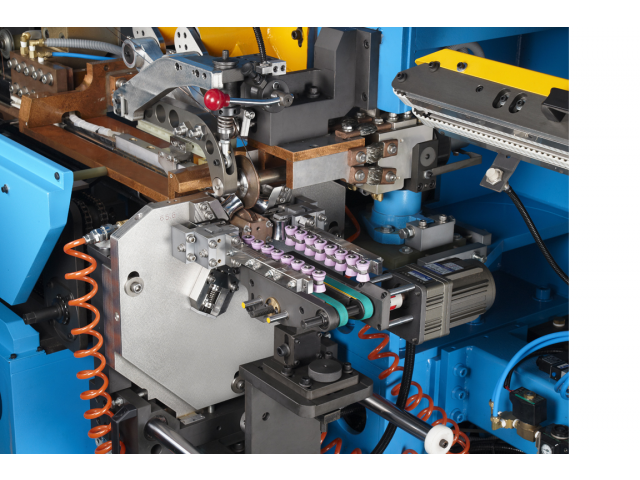

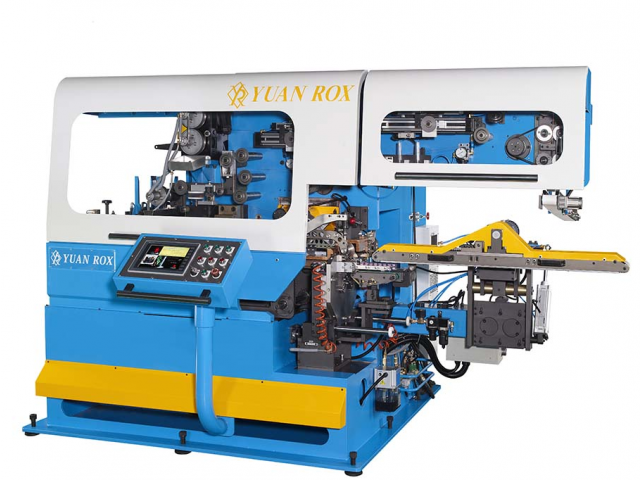

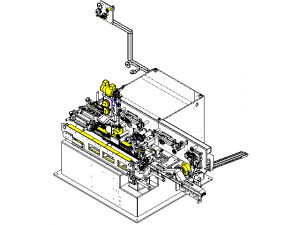

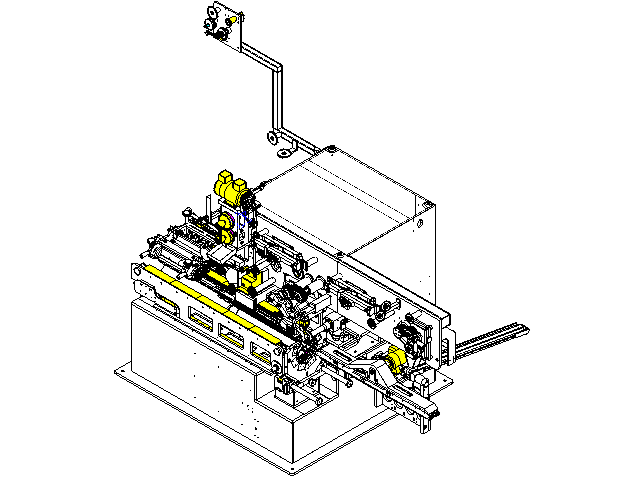

AUTOMATIC CAN BODY WELDER(HIGH PRESSURE)

​​

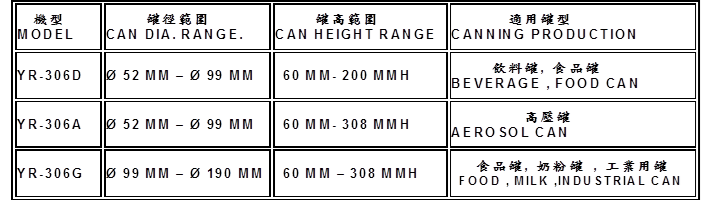

TYPE

YR-306A
CAPACITY YR-306A = 300 CANS/MIN

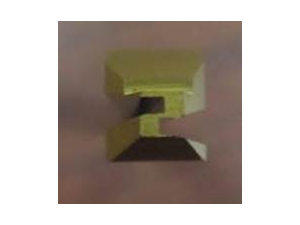

COPPER WIRE SPEED RANGE UP TO 50 M/MIN

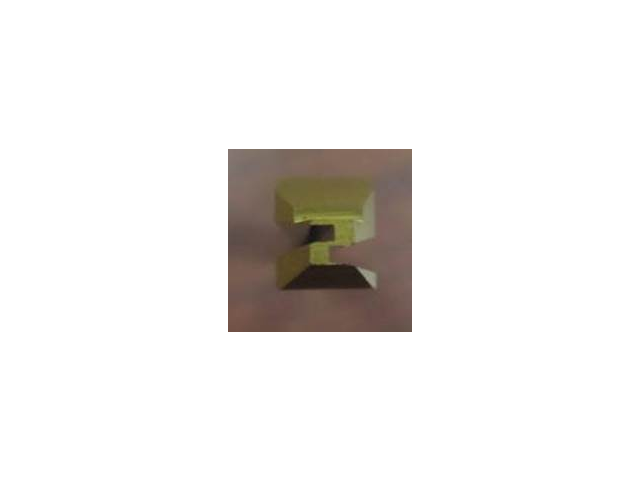

WIRE DIAMETER Ø 1.27 OR Ø 1.38 OR Ø 1.50 MM
OVERLAP 0.3 OR 0.4 OR 0.6 MM
FREQUENCY RANGE UP TO 600 HZ
TINPLATE THICKNESS  0.14 (DR8) - 0.28 MM

FEATURES
DIGITAL FREQUENCY INVERTOR.
NON STOP FEEDER SYSTEM AND CHAIN TYPE SYSTEM.

PARALLEL PUSHER SYSTEM, TWO PARALLEL PUSHER REMOVE THE CAN INTO THE WELDING SYSTEM.

MICRO COMPUTER CONTROL SYSTEM BY  MEAN OF MITSUBISHI PLC(MADE IN JAPAN).

SERVO MOTOR CONTROL AND CLOSE LOOP FEEDBACK SYSTEM.

TOUCHABLE INTERFACE, ADJUST OR TROUBLESHOOTING TOUCH THE PANEL.

SELF PROTECTION EQUIPMENT. IF THE MACHINE CIRCUIT BREAK DOWN, THE MACHINE AUTOMATIC STOP SHOW ON TOUCH SCREEN PANEL ALARM AREA.

DOUBLE SHEET MONITORING AND EJECTION SYSTEM.

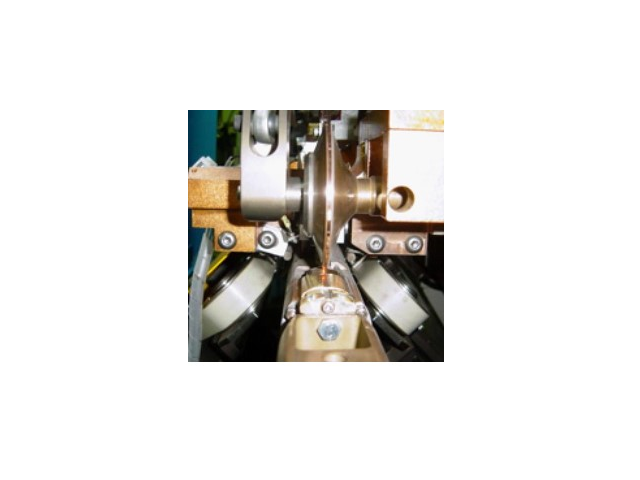

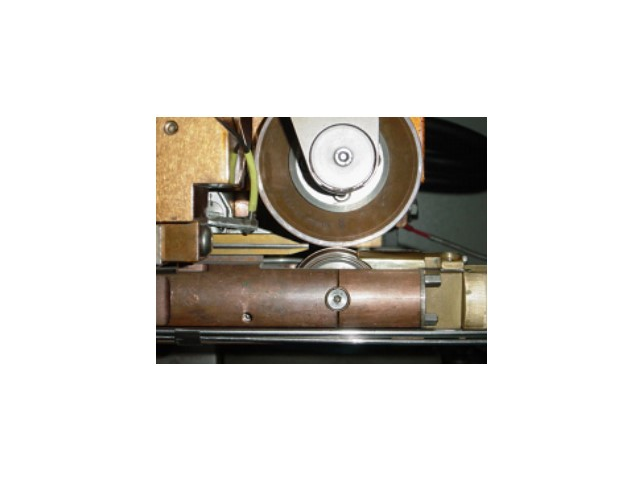

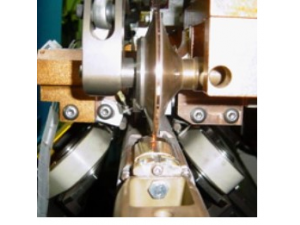

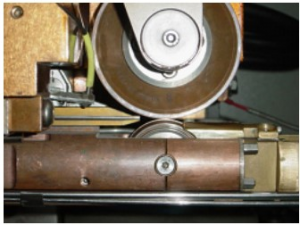

LOWER WELDING ROLLER STANDARD OFFER IS MERCURY TYPE.

LOWER WELDING ARM SUITABLE FOR 'ISS' POWDER OR LACQUER.

MERCURY FREE ROLLER IS AVAILABLE ON OPTION.

AUTO. TAKE OFF CONVEYOR, IT IS BE DESIGN BY PNEUMATIC CYLINDER, ON/OFF BY SWITCH SAVING MAN POWER.

T1/T2 WELDING SYSTEM.

*DUE TO CONTINUOUS IMPROVEMENT PROGRAMS, SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
