| CAN DIA. RANGE |
#202D – #401D |
| CAN HEIGHT RANGE |
65 MM- 180 MM |
| CAPACITY |
500 TO 550 CAN/MIN |
| COPPER WIRE SPEED RANGE |
UP TO 75 M/MIN |
| WIRE DIAMETER |
φ1.27 MM |
| OVERLAP |
0.3 MM |
| SHEET THICKNESS |
0.14 – 0.25 MM |
|
DIGITAL FREQUENCY INVERTER 1 SET
|
|
PLC MICRO COMPUTER CONTROL SYSTEM
|
|
TOUCHABLE INTERFACE, ADJUST OR ALARM, SHOW ON THE PANEL.
|
|

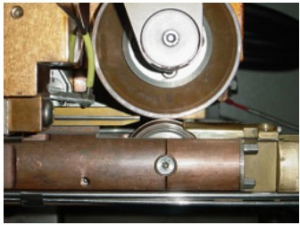

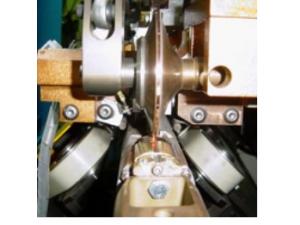

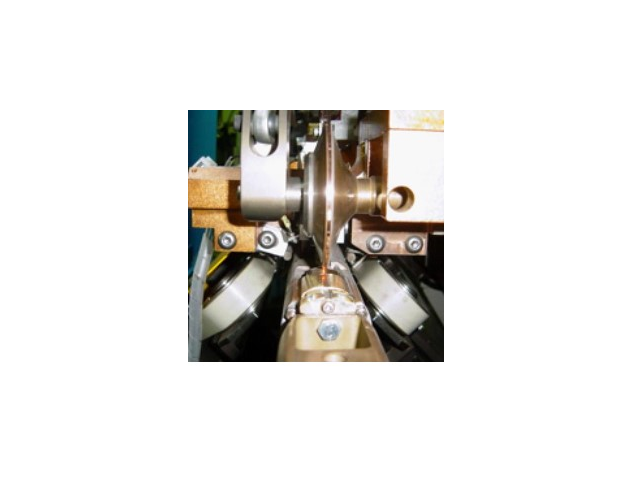

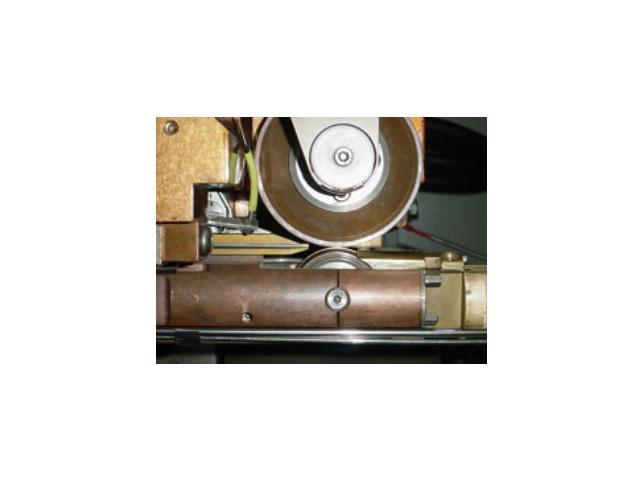

LOWER WELDING ARM SUITABLE FOR "ISS" POWDER OR LACQUER
|
|
LOWER WELDING ROLLER STANDARD OFFER IS MERCURY TYPE. MERCURY FREE ROLLER IS AVAILABLE ON OPTION.
|
|
*DUE TO CONTINUOUS IMPROVEMENT PROGRAMS, SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. |
