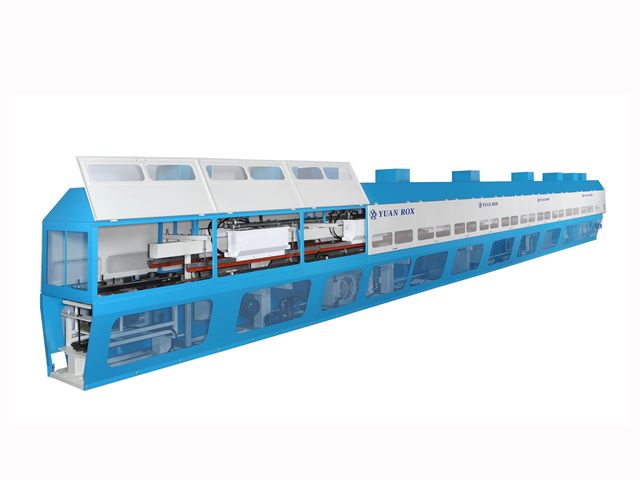

YR-603 dryer is to dry the inside and outside of the can body for the Nice biscuit.
It demonstrates a high-efficiency operation speed of up to 60 meters per minute.
There are available in two models: straight line and rotary (U turn).
MODEL: YR-603I-XX UP (U SERIES)
NUMBER OF HEAT HEAD
AVAILABLE LENGTH
TOTAL LENGTH
4 PCS
12.0 METER
7.60 METER
6 PCS
18.0 METER
10.60 METER
8 PCS
24.0 METER
13.60 METER
MODEL: YR-603S-XX IP (STRAIGHT SERIES) EACH HEAT HEAD LENGTH IS 760MM
NUMBER OF HEAT HEAD
AVAILABLE LENGTH
TOTAL LENGTH
2 PCS
6.0 METER
7.60 METER
3 PCS
9.0 METER
10.60 METER
4 PCS
12.0 METER
13.60 METER
5 PCS
15.0 METER
16.60 METER
6 PCS
18.0 METER
19.60 METER
SPECIFICATION
YR-603
CAN DIAMETER RANGE
#202D-#401D OR #401D-#800D
CAN HEIGHT REANGE
65-350 MM
SPEED
12-85 M/MIN
FEATURES
HEAT HEAD ELECTRONIC REQUIRMENT：3KVA/SET
LENGTH OF EACH HEAT HEAD: 2M
OUTPUT DISPLAY SYSTEM

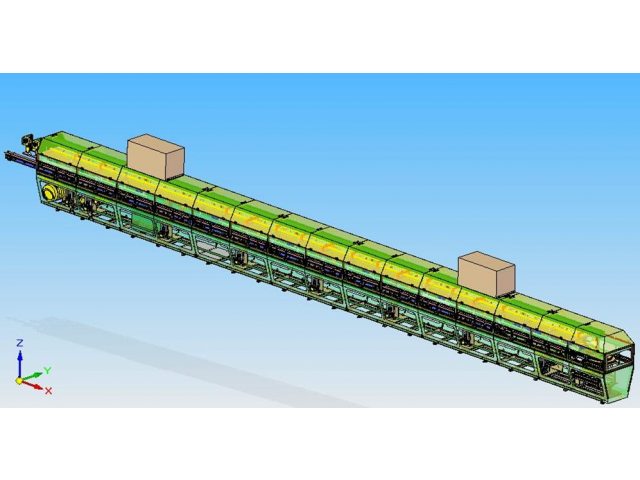

LINEAR OR U SHAPE BELT DRYER
AUTO SENSOR SYSTEM(NO CAN NO HEAT)
*DUE TO CONTINUOUS IMPROVEMENT PROGRAMS, SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE
