Detail

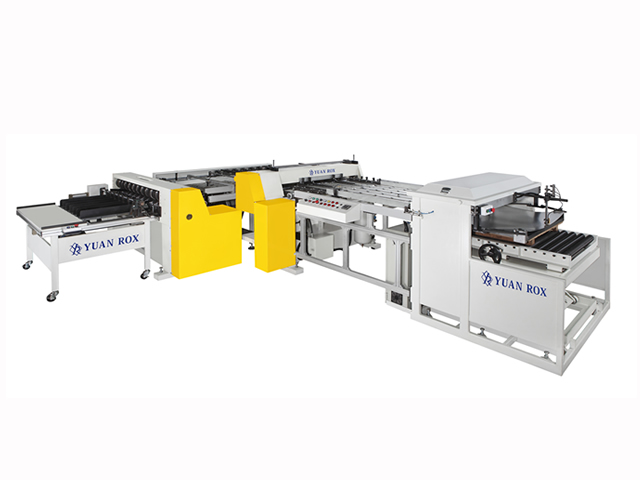

AUTO. FEEDING DUPLEX SLITTER

TYPE

YR-804

AUTO. X TYPE FEEDING MACHINE 1 SET
DUPLEX GANG SLITTER MACHINE 1 SET
AUTO. BLANK COLLECTOR 1 SET
GRINDING MACHINE 1 SET
TINPLATE 90°MEASUREMENT DEVICE 1 SET
1ST OPERATION 500-1040 MM
2ND OPERATION 710-1040 MM
MAX. SHEET THICKNESS ~0.4 MM

FEATURES



DOUBLE FEEDING DOGS AND PUSH FINGERS DESIGN FOR SQUARENESS ADJUSTING.

REMOVABLE SHAFTS BARING HUB FOR CUTTERS TO REMOVE OR ADD.

VARIABLE SPEED CONTROL TO MATCH THE CAN BODY PRODUCTION REQUIREMENT.

WITH DOUBLE SHEET DETECTORS TO GUARANTEE SAFE OPERATION.

TIN SHEET FEED BY X TYPE HYDRAULIC LIFTER.

TABLE BY HIGH QUALITY ALUMINUM AND BEARING SYSTEM PREVENT FOR SCRAPE.

OPTIONAL:

COMPLETECOVER IS MADE FOR BOTH TRANSMISSION TABLE, FEEDER, CUTTER...



*DUE TO CONTINUOUS IMPROVEMENT PROGRAMS, SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
